dc-ServoDisk actuators
U... & Platinum - series


- with AlNiCo magnet material
- 0,34... 1,12 Nm (94... 350 W)
- nominal speed up to 5,000 rpm
- for high-dynamic applications and/or exact regulations at
   large speed range
- zero cogging for smooth operation, even at crawling speed
- available with tacho, optical encoder, failsafe brake and
   precision gearhead

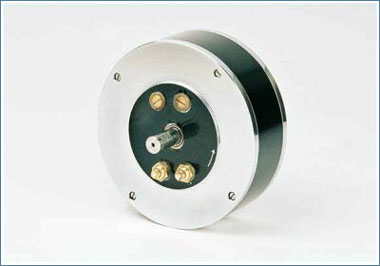

The U- and the Platinum-series use the flat disc armature. The ironless, low intertia armature delivers high acceleration and zero cogging in an exceptionally compact package.

Technical data overview ServoDisk series U...



U09M4

U09M4T*

U12M4

U12M4T*

U12M4H

U12M4HT*

Nominal torque

MN

Ncm

34

30

85

80

112

97

Peak torque

Mmax

Ncm

306

283

861

843

1380

1208

Nominal speed

nN

min-1

3000

3000

3000

3000

3000

3000

Power output

PN

W

106

94

268

250

350

305

Terminal voltage

UN

V

24

24

43

40

63,5

56,5

Nominal current

IN

A

8,7

8,7

8,8

8,7

8

8
* Motor with integrated tacho

Technical data overview
ServoDisk "Platinum" series



U09D-A

U09DT-A*

U12D-A

U12DT-A*

Nominal torque

MN

Ncm

32

29

81

74

Peak torque

Mmax

Ncm

320

290

907

831

Nominal speed

nN

min-1

3000

3000

3000

3000

Power output

PN

W

109

94

275

250

Terminal voltage

UN

V

23

22

44

40

Nominal current

IN

A

8,7

8,3

8,7

8,7
* Motor with integrated tacho
